YONI Backlit module

YONI – Backlit module for Lightboxes

• Suitable for shallow backlit Lightboxes
• Light output 1200 lumens

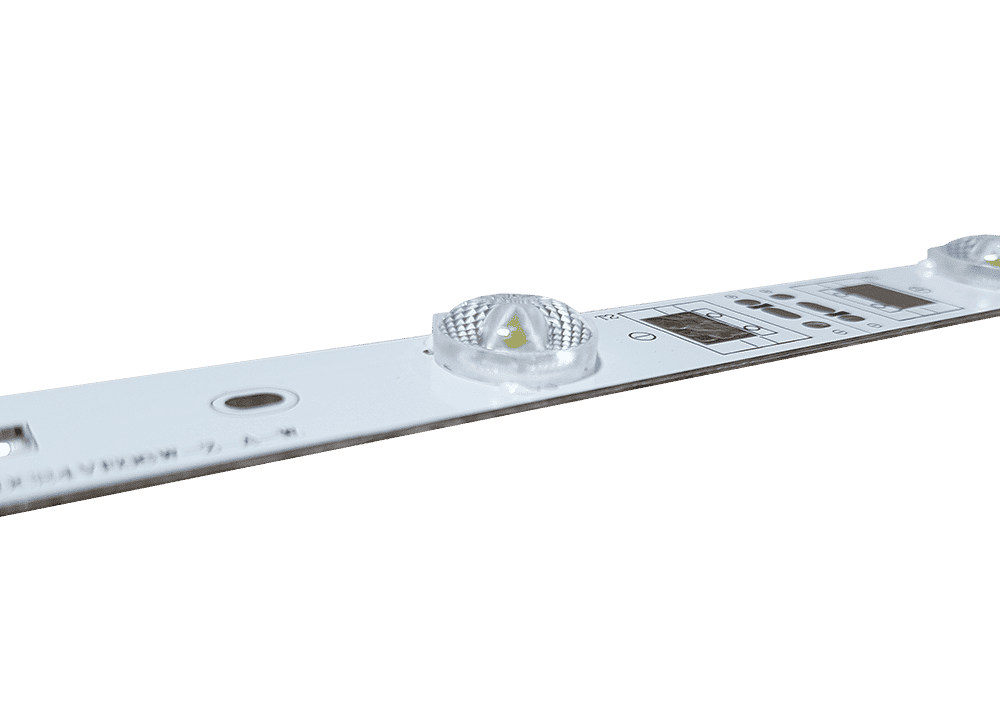

• 12 LEDs of 1 watt with very large radiation angle of 170 degrees
• Available with 12 LEDs (960 mm) and 6 LEDs (480 mm)

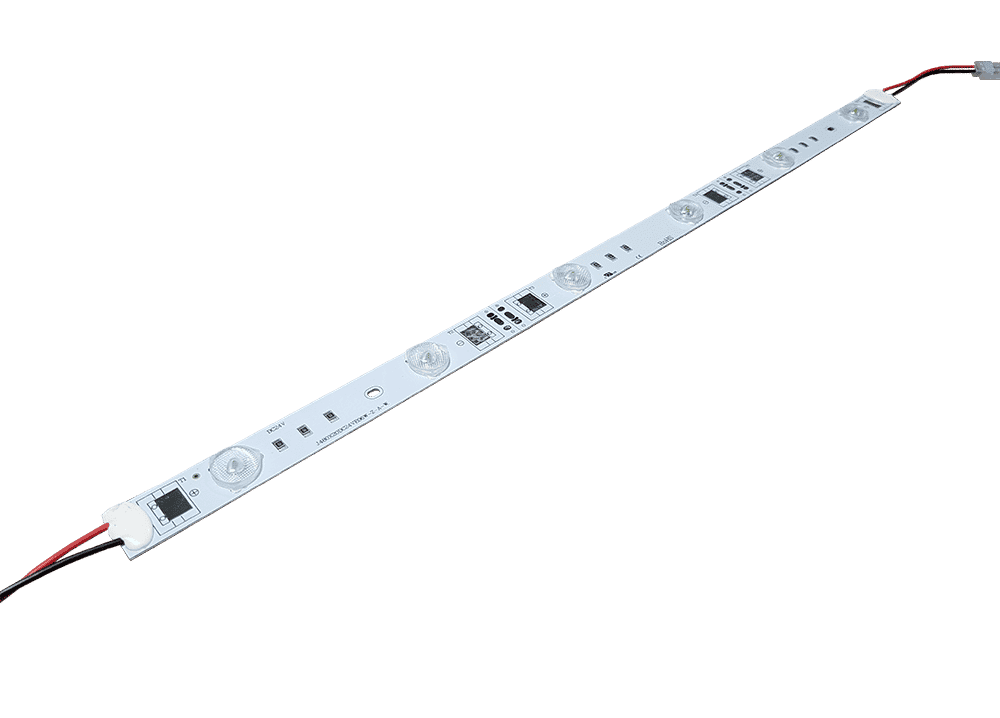

The YONI is a high-quality backlit module specially designed for shallow Lightboxes illuminated from the back.

With a light output of 1200 lumens, the YONI provides bright and even lighting in the Lightboxes. The module is equipped with 12 1-watt LEDs. Thanks to the very large radiation angle of 170 degrees, the light is evenly distributed and fills the entire Lightboxes with brightness.

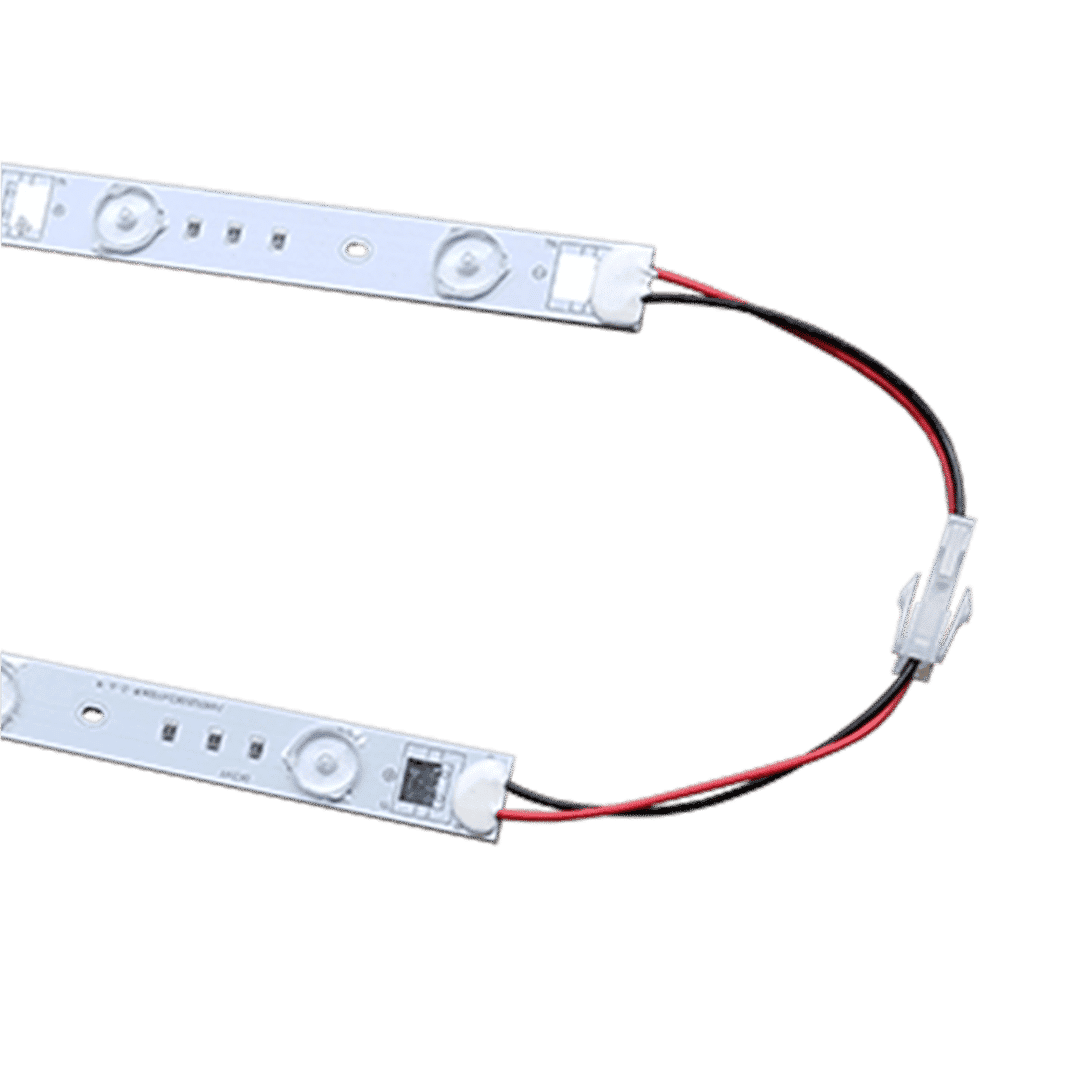

An external driver is required to power the YONI. This driver ensures a reliable and stable power supply. By using connection cables of different lengths, you can easily connect and customise the YONI to your specific needs and Lightboxes dimensions.

The YONI is available in two variants: a 12-LED version (960 mm) and a 6-LED version (480 mm). This gives you the flexibility to adapt the module to the size of your Lightboxes and the desired lighting intensity. With a cold white colour temperature of 7000 Kelvin, the YONI offers a bright and vivid light that is perfect for a variety of applications.
